GoogleTest#002#编译安装及简单测试

发表于： 2019-02-02 更新于： 2019-02-26 分类于： 05#源码分析

字数： 2196 阅读：≈ 5分钟浏览：

Google Test，简称gtest，是Google出品的C++单元测试框架。基于该框架，我们可以编写和运行单元测试、集成测试和功能测试。本系列博文，重点讲解gtest的使用方法和实现原理。

0x01gtest相关资源

GoogleTest官方Git地址

https://github.com/google/googletest

GoogelTest官方文档

https://google.github.io/googletest

0x02 gtest下载

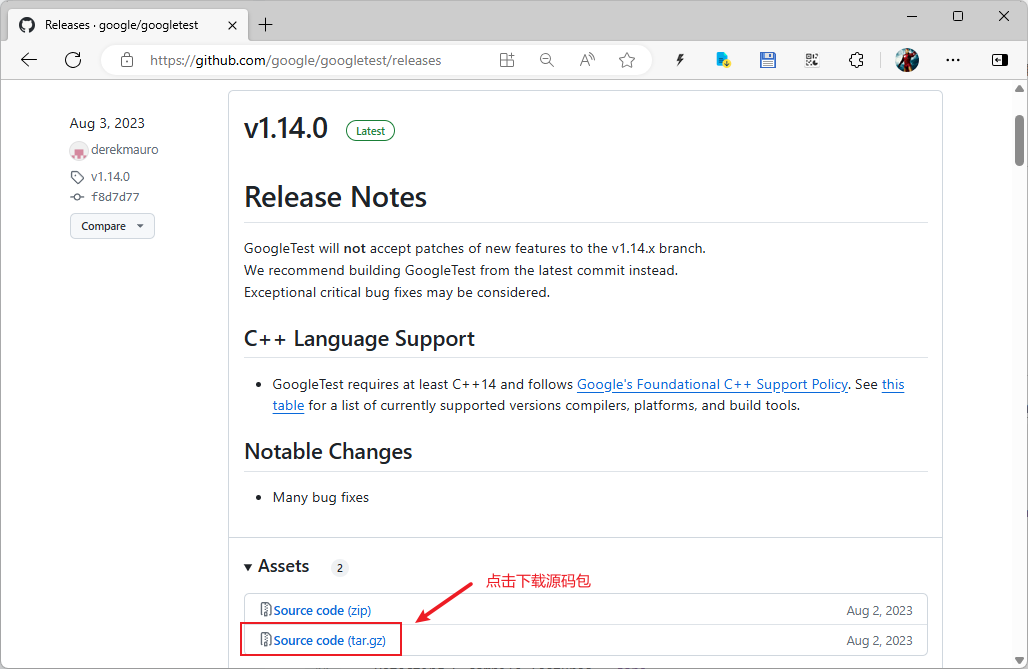

打开下载页面： https://github.com/google/googletest/releases 。如下图所示，我们下载当前的最新版本v1.14.0，点击下载链接，完成后再将源码包googletest-1.14.0.tar.gz上传至服务器。

或者我们在服务器上。使用如下命令直接下载：

1
wget https://github.com/google/googletest/archive/refs/tags/v1.14.0.tar.gz

0x03 gtest编译安装

gtest使用cmake编译，如果你的操作系统没有安装安装该软件，使用如下命令安装：

1
sudo apt install cmake

gtest默认安装在/usr/目录下，本文为了测试以及方便观察其所生成的有用文件，指定将其安装到/home/mancode/apps/gtest目录内。

gtest编译和安装使用如下命令：

1
2
3
4
5
6
tar -zxvf googletest-1.14.0.tar.gz
cd googletest-1.14.0
mkdir build && cd build
cmake -DCMAKE_INSTALL_PREFIX=/home/mancode/apps/gtest ..
make
make install

如下所示，使用cmake生成makefile的过程输出：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
mancode@manos:~/dev/gtest/googletest-1.14.0$
mancode@manos:~/dev/gtest/googletest-1.14.0$ mkdir build
mancode@manos:~/dev/gtest/googletest-1.14.0$ cd build
mancode@manos:~/dev/gtest/googletest-1.14.0/build$ cmake -DCMAKE_INSTALL_PREFIX=/home/mancode/apps/gtest ..
-- The C compiler identification is GNU 11.4.0
-- The CXX compiler identification is GNU 11.4.0
-- Detecting C compiler ABI info
-- Detecting C compiler ABI info - done
-- Check for working C compiler: /usr/bin/cc - skipped
-- Detecting C compile features
-- Detecting C compile features - done
-- Detecting CXX compiler ABI info
-- Detecting CXX compiler ABI info - done
-- Check for working CXX compiler: /usr/bin/c++ - skipped
-- Detecting CXX compile features
-- Detecting CXX compile features - done
-- Found Python3: /usr/bin/python3.10 (found version "3.10.12") found components: Interpreter
-- Looking for pthread.h
-- Looking for pthread.h - found
-- Performing Test CMAKE_HAVE_LIBC_PTHREAD
-- Performing Test CMAKE_HAVE_LIBC_PTHREAD - Success
-- Found Threads: TRUE
-- Configuring done
-- Generating done
-- Build files have been written to: /home/mancode/dev/gtest/googletest-1.14.0/build
mancode@manos:~/dev/gtest/googletest-1.14.0/build$

如下所示，使用make编译源代码的过程输出：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
mancode@manos:~/dev/gtest/googletest-1.14.0/build$
mancode@manos:~/dev/gtest/googletest-1.14.0/build$ make
[ 12%] Building CXX object googletest/CMakeFiles/gtest.dir/src/gtest-all.cc.o
[ 25%] Linking CXX static library ../lib/libgtest.a
[ 25%] Built target gtest
[ 37%] Building CXX object googlemock/CMakeFiles/gmock.dir/src/gmock-all.cc.o
[ 50%] Linking CXX static library ../lib/libgmock.a
[ 50%] Built target gmock
[ 62%] Building CXX object googlemock/CMakeFiles/gmock_main.dir/src/gmock_main.cc.o
[ 75%] Linking CXX static library ../lib/libgmock_main.a
[ 75%] Built target gmock_main
[ 87%] Building CXX object googletest/CMakeFiles/gtest_main.dir/src/gtest_main.cc.o
[100%] Linking CXX static library ../lib/libgtest_main.a
[100%] Built target gtest_main
mancode@manos:~/dev/gtest/googletest-1.14.0/build$

如下所示，使用make install安装软件的过程输出：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
mancode@manos:~/dev/gtest/googletest-1.14.0/build$
mancode@manos:~/dev/gtest/googletest-1.14.0/build$ make install
Consolidate compiler generated dependencies of target gtest
[ 25%] Built target gtest
Consolidate compiler generated dependencies of target gmock
[ 50%] Built target gmock
Consolidate compiler generated dependencies of target gmock_main
[ 75%] Built target gmock_main
Consolidate compiler generated dependencies of target gtest_main
[100%] Built target gtest_main
Install the project...
-- Install configuration: ""
-- Installing: /home/mancode/apps/gtest/include
-- Installing: /home/mancode/apps/gtest/include/gmock
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-function-mocker.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-matchers.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-more-matchers.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-nice-strict.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock.h
-- Installing: /home/mancode/apps/gtest/include/gmock/internal
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/custom
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/custom/gmock-generated-actions.h
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/custom/gmock-matchers.h
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/custom/README.md
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/custom/gmock-port.h
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/gmock-pp.h
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/gmock-internal-utils.h
-- Installing: /home/mancode/apps/gtest/include/gmock/internal/gmock-port.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-cardinalities.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-spec-builders.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-actions.h
-- Installing: /home/mancode/apps/gtest/include/gmock/gmock-more-actions.h
-- Installing: /home/mancode/apps/gtest/lib/libgmock.a
-- Installing: /home/mancode/apps/gtest/lib/libgmock_main.a
-- Installing: /home/mancode/apps/gtest/lib/pkgconfig/gmock.pc
-- Installing: /home/mancode/apps/gtest/lib/pkgconfig/gmock_main.pc
-- Installing: /home/mancode/apps/gtest/lib/cmake/GTest/GTestTargets.cmake
-- Installing: /home/mancode/apps/gtest/lib/cmake/GTest/GTestTargets-noconfig.cmake
-- Installing: /home/mancode/apps/gtest/lib/cmake/GTest/GTestConfigVersion.cmake
-- Installing: /home/mancode/apps/gtest/lib/cmake/GTest/GTestConfig.cmake
-- Up-to-date: /home/mancode/apps/gtest/include
-- Installing: /home/mancode/apps/gtest/include/gtest
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-test-part.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-spi.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest_prod.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-matchers.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-param-test.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-assertion-result.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-printers.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest_pred_impl.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/custom
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/custom/README.md
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/custom/gtest-port.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/custom/gtest-printers.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/custom/gtest.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-internal.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-type-util.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-port-arch.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-string.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-death-test-internal.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-port.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-param-util.h
-- Installing: /home/mancode/apps/gtest/include/gtest/internal/gtest-filepath.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-typed-test.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-death-test.h
-- Installing: /home/mancode/apps/gtest/include/gtest/gtest-message.h
-- Installing: /home/mancode/apps/gtest/lib/libgtest.a
-- Installing: /home/mancode/apps/gtest/lib/libgtest_main.a
-- Installing: /home/mancode/apps/gtest/lib/pkgconfig/gtest.pc
-- Installing: /home/mancode/apps/gtest/lib/pkgconfig/gtest_main.pc
mancode@manos:~/dev/gtest/googletest-1.14.0/build$

如下所示，gtest最终安装的文件列表：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
mancode@manos:~/apps/gtest$ pwd
/home/mancode/apps/gtest
mancode@manos:~/apps/gtest$
mancode@manos:~/apps/gtest$ tree .
.
├── include
│   ├── gmock
│   │   ├── gmock-actions.h
│   │   ├── gmock-cardinalities.h
│   │   ├── gmock-function-mocker.h
│   │   ├── gmock.h
│   │   ├── gmock-matchers.h
│   │   ├── gmock-more-actions.h
│   │   ├── gmock-more-matchers.h
│   │   ├── gmock-nice-strict.h
│   │   ├── gmock-spec-builders.h
│   │   └── internal
│   │       ├── custom
│   │       │   ├── gmock-generated-actions.h
│   │       │   ├── gmock-matchers.h
│   │       │   ├── gmock-port.h
│   │       │   └── README.md
│   │       ├── gmock-internal-utils.h
│   │       ├── gmock-port.h
│   │       └── gmock-pp.h
│   └── gtest
│       ├── gtest-assertion-result.h
│       ├── gtest-death-test.h
│       ├── gtest.h
│       ├── gtest-matchers.h
│       ├── gtest-message.h
│       ├── gtest-param-test.h
│       ├── gtest_pred_impl.h
│       ├── gtest-printers.h
│       ├── gtest_prod.h
│       ├── gtest-spi.h
│       ├── gtest-test-part.h
│       ├── gtest-typed-test.h
│       └── internal
│           ├── custom
│           │   ├── gtest.h
│           │   ├── gtest-port.h
│           │   ├── gtest-printers.h
│           │   └── README.md
│           ├── gtest-death-test-internal.h
│           ├── gtest-filepath.h
│           ├── gtest-internal.h
│           ├── gtest-param-util.h
│           ├── gtest-port-arch.h
│           ├── gtest-port.h
│           ├── gtest-string.h
│           └── gtest-type-util.h
└── lib
    ├── cmake
    │   └── GTest
    │       ├── GTestConfig.cmake
    │       ├── GTestConfigVersion.cmake
    │       ├── GTestTargets.cmake
    │       └── GTestTargets-noconfig.cmake
    ├── libgmock.a
    ├── libgmock_main.a
    ├── libgtest.a
    ├── libgtest_main.a
    └── pkgconfig
        ├── gmock_main.pc
        ├── gmock.pc
        ├── gtest_main.pc
        └── gtest.pc

11 directories, 52 files
mancode@manos:~/apps/gtest$

0x04 gtest简单测试

上文我们已经成功编译gtest，接下来我们写个简单的例子来看下gtest是如何使用的。

首先，编写单元测试用例：

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
#include <iostream>
#include <string>
#include <gtest/gtest.h>

int add(int a, int b)
{
    return a + b;
}

TEST(Fun, AddTest0) // 该用例为成功案例
{
    EXPECT_EQ(2, add(1, 1));
    EXPECT_EQ(4, add(2, 2));
}

TEST(Fun, AddTest1) // 该用例为失败案例
{
    EXPECT_EQ(1, add(1, 1));
}

int main(int argc, char **argv)
{
    ::testing::InitGoogleTest(&argc, argv);

    return RUN_ALL_TESTS();
}

然后，我们写个简单的Makefile或者你直接用g++进行编译。

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
GTEST_INC_PATH := /home/mancode/apps/gtest
GTEST_INC      := -I${GTEST_INC_PATH}/include

GTEST_LIB_PATH := /home/mancode/apps/gtest/lib
GTEST_LIB      := ${GTEST_LIB_PATH}/libgtest_main.a ${GTEST_LIB_PATH}/libgtest.a

test:
    g++ -o test test.cc ${GTEST_INC} ${GTEST_LIB}

clean:
    rm -rf test

或者我写好的测试代码以及 Makefile ，右键选择将链接另存为，保存到本地。

最后，我们在服务器上编译测试代码。

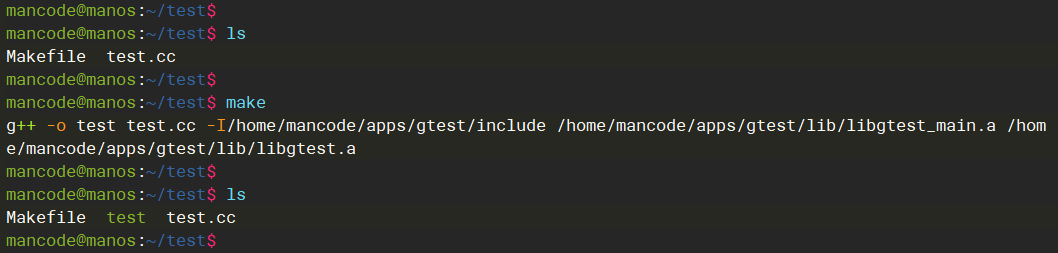

编译测试用例，如下图所示：

运行测试用例，如下图所示：

0x05 静态库说明

二者的区别其实比较简单，但要说清楚还得从gtest的源代码说起。 gtest源代码在 googletest-1.14.0/googletest/src 目录内。主要由这些文件组成：

libgtest.a

是由gtest-all.cc，gtest.cc，gtest-filepath.cc，gtest-port.cc，gtest-test-part.cc，gtest-assertion-result.cc，gtest-death-test.cc， gtest-matchers.cc，gtest-printers.cc，gtest-typed-test.cc，编译而来。

libgtest_main.a

是由gtest_main.cc，编译而来。

总结一下，如果在你的测试代码中：

自己实现main函数，那只需链接libgtest.a即可
没有实现main函数，那么你需要同时链接libgtest_main.a和libgtest.a这两个静态库。也就是说libgtest_main.a会帮你定义main入口函数。
